P66 - Layout a binary tree (3).

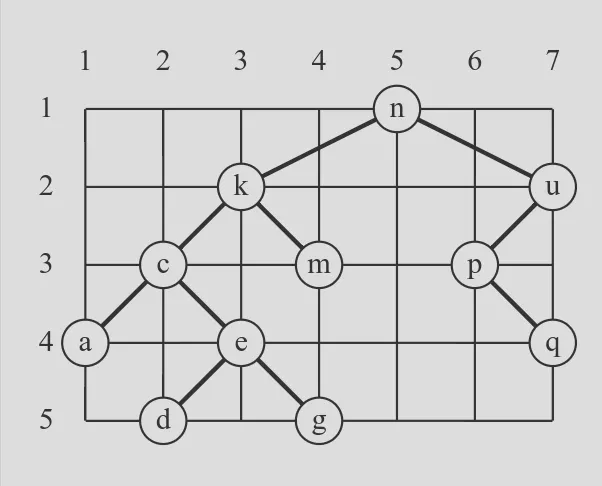

Yet another layout strategy is shown in the illustration opposite. The method yields a very compact layout while maintaining a certain symmetry in every node. Find out the rules and write the corresponding method.
Hint: Consider the horizontal distance between a node and its successor nodes. How tight can you pack together two subtrees to construct the combined binary tree?
Use the same conventions as in problem P64 and P65. Note: This is a difficult problem. Don’t give up too early!
scala
scala> Node('a', Node('b', End, Node('c')), Node('d')).layoutBinaryTree3
res0: PositionedNode[Char] = T[2,1]('a T[1,2]('b . T[2,3]('c . .)) T[3,2]('d . .))
Which layout do you like most?
